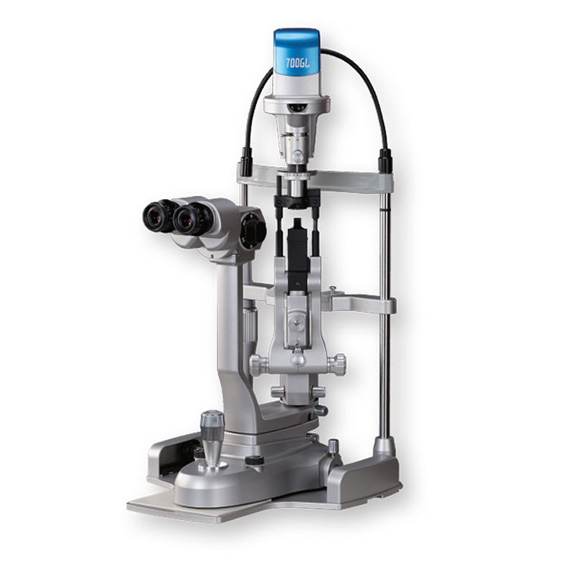

Slit Lamps
Technical Specifications
Stereo Microscope Type | Galilean |
Magnification Changer | Lever type |
Working Distance | 100 mm |
Objective Lens Focal Length | f65 mm |
Eye Pieces (Large Optics) | 10x |
Total Magnifications | 10x,16x |
Real Field of View | 20, 12. 5 mm |
Inter Pupillary Distance | 49 - 90 mm |
Diopter Adjustment Range | -6 D to +6 D |
Common Specifications | |
Slit image Width | 0 to 14 mm continuously variable |
Slit image Height | 0 to 14 mm continuously variable |
Illumination Field Diameter in mm | 0.2, 2, 3, 4, 6, 8 & 14 mm |
Slit Rotation | 0° to 180° |
Slit Inclination | 5°, 10°, 15°, 20° |
Sclerotic Scatter Knob | for Indirect illumination & Retro illumination |
Filters | Heat absorbing, Green (Red free ), Cobalt blue |
Illumination | 12 V- 30 W Halogen lamp / 3.4 V-700 mAh LED |
Operation | 3 Dimensional single handed operation |
Instrument base movement | 99 mm (in/out), 30 mm (up/down),118 mm (left/right) |
Physical Parameters | |
Dimensions L x W x H ) | 725 x 460 x 555 mm |
Weight | net 20 Kg and gross 27 Kg (approx) |
Chin rest movement range | 120 mm |
Electrical Specifications | |
Power supply | ~110-230 V, 50-60 Hz |
Power consumption | 45 W max(Halogen) / 2.4 W max(LED) |
